Press Felt

Single Layer Press Felt

It consists of a single bottom mesh layer and a fiber layer, and has a relatively simple structure.
It has good water filtration performance and small elongation.
The felt has light marks and is easy to clean.

It effectively reduces groove marks.

It is widely used in various papermaking machines to produce various types of paper.

Double Layer Press Felt

The structure is a 1+1 composite structure.
Stable size and good elasticity.
Applicable to groove pressing, vacuum pressing, etc., which can effectively eliminate groove marks and vacuum marks.
Applicable to paper machines such as fourdrinier, stacked, and multi-circular nets to produce high grade cultural paper, new net paper, etc.

Triple Layer Press Felt

The triple layer press felt can be divided into 1+1+1, 1+2 and 2+1 composite structures.
The surface of the press felt is flat and smooth.
It can adapt to high strength line pressure.
It is suitable for high speed paper machines to produce high grade new mesh paper, cultural paper, cardboard and other paper types.

Production Process

Wrapping paper press felt: Applicable to the paper machine press felts with speed of 300-600m/min, vacuum suction transfer, vacuum pre-pressing + two-pass large roller blind hole press, vacuum paper pre-pressing + two-pass large roller press. Paper types that can be produced: 70-120gsm corrugated, 140-180gsm kraft paper, and noodle boxboard.
Culture paper press felt: Applicable to speed: 300-600m/min Composite pressing: four roller two press, four roller three press, five roller three press, K press type press felt, suitable for 50-100g various cultural papers.
High speed household paper press felt: Suitable for vacuum rotary screen, crescent type and other high speed paper machines, producing 10g/㎡ to 45g/㎡ household paper.
Specialty paper press felt: Applicable to special paper machines with speeds of ≥200m/min, capable of producing various types of special paper.
Pulp board press felt: Suitable for felts in two-pass large roller presses with a speed of 80-120m/min, and suitable for the production of paper grades: 350-1200g.
Machine-made cement tile press felt: It is suitable for the production of large, medium and small corrugation cement tile, calcium silicate board by hatscheck process or pulp fluid method. Felt for clamping machine is applied for production line where clamping plants available.
Flocked dryer screen: It is divided into medium ring, small ring, with end and without end. It is suitable for the drying section of various paper machines; it is used as MG felt and dryer felt for cultural paper, special paper, high end cardboard and other paper machines.

Process Flow

Differences between seamed press felt and endless felts

The biggest difference between seamed press felt and ordinary press felts is installation and disassembly. Seamed press felts are specially designed with seam structures. Ordinary press felts require complex installation and disassembly by humans, which takes a lot of time and manpower. Seamed press felts can be directly put on the paper machine and connected using a special seam structure, which not only ensures the safety of the production process but also greatly reduces the replacement time so that the paper machine can be put into production quickly.

Easy to install, reduce labor consumption, reduce downtime and improve efficiency.

Stable structure, excellent pressure resistance and tensile resistance.

Good water filtration performance.

Sun hong's seamed press felts are made of high quality fiber materials and designed using special processes.

The seams are reinforced so that there is no need to worry about falling off even when running at high speeds, which effectively improves your production efficiency.

We can customize and tailor a unique solution for you according to customer needs.

Overseas Export

Sun Hong provides you with cost effective paper making press felt and efficient and reliable paper machine clothing solutions. Sun Hong paper making press felts are made of high quality materials, advanced production equipment and sophisticated design to ensure good stability and wear resistance in paper making production. They can be customized according to customer needs (production of paper types, paper machine specifications, etc.). Sun Hong's press felt series: single layer press felt, double layer press felt, triple layer press felt, seamed press felt,

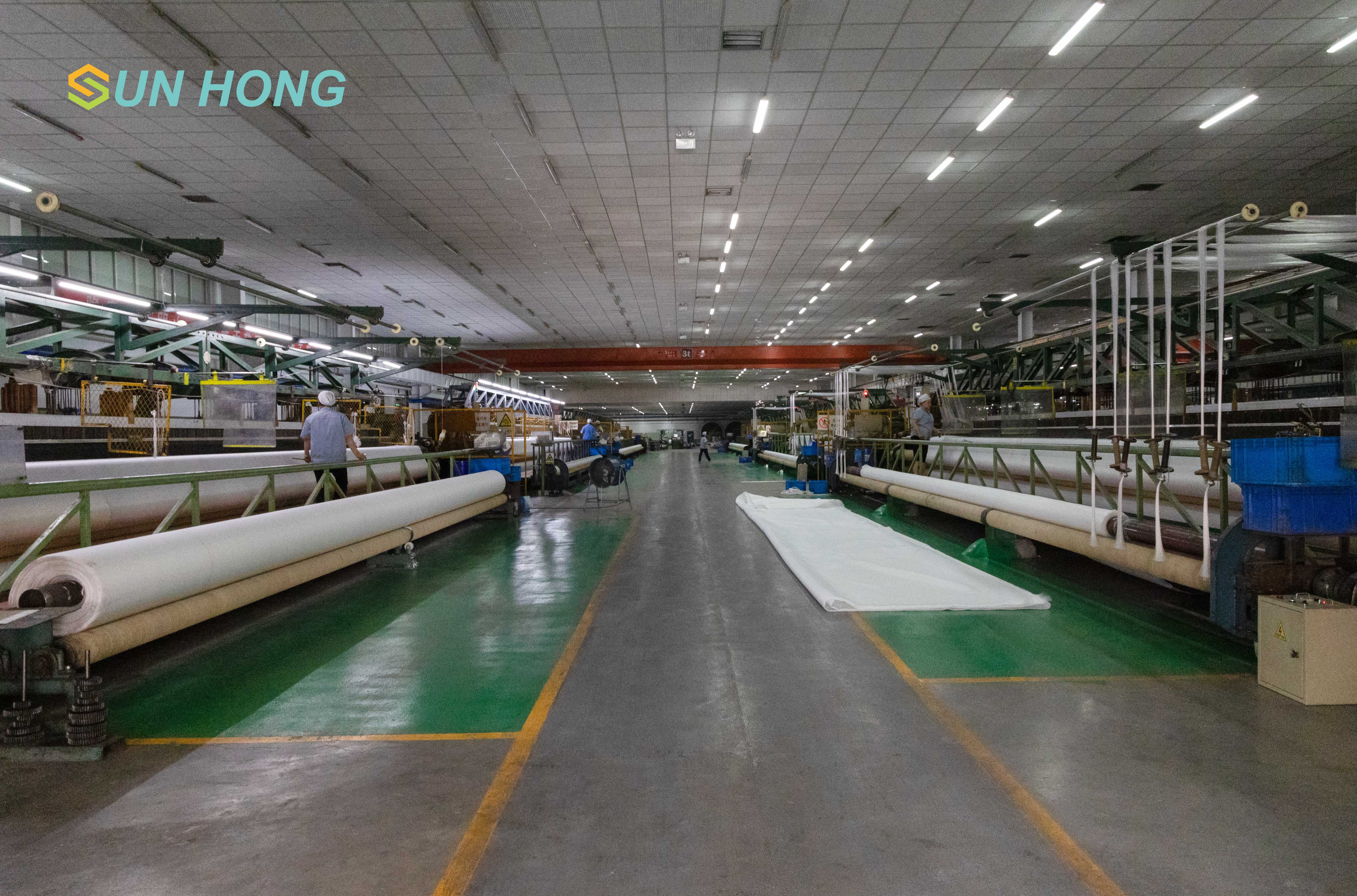

Factory Video

Oversea Shipment

Feb

21

What is the management system of stock preparation?

The company focuses on manufacturing paper machine accessories and ingredients. From the perspective of emphasizing prevention, the enterprise should implement the "three Simultaneities" plan of stock preparation when formulating the equipment procurement plan: determine the equipment structure and
Sep

08

Classification and purchase of paper machine clothing press felt

Paper machine clothing press felt is an important consumable material in the paper industry. Mainly used in fourdrinier paper machine, drum paper machine, cardboard machine to transport wet paper and dewater. Paper machine clothing press felt can be divided into single-layer felt, double-layer felt
Jul

16

Sun Hong Felt & Fabric Industry

As one of the biggest textile technology products manufacturers in China, Sun Hong Group have exported 96 country and have more than 300 customers.We adhere to the technology development strategy of high starting point and high investment. Sun Hong fabrics focus on paper and pulp industry with cost-effective products and one by one design solution, help customer reducing energy consumption,increase capacity while obtaining excellent ending paper property.We commit ourselves to providing the first class-product and serve for you, your satisfaction is our pursuit.
May

23

How to install press felt ?

First, Precautions before operation:1. Check whether the package is complete;2. Check whether the product number, specification and weight are the same as the order content;3. Open the package, check the felt appearance quality and size, verify the product number and check the running arrow.Second,
May

23

Things you need to know about felt lint ? Why and How to slove it ?

Reason:There are many reasons for the damage and the lint of the felt, mainly two of which are scraped by machine parts and chemical damage.1.The most common reason is that the surface of the press felt torn loosened by high pressure water.2.Lack of lubricating water between the vacuum panel and the

What is the reason for the rapid wear of the edge of the forming fabric?

Most of the most serious wear is at the joint between the vacuum and the non-vacuum, about 10-15cm from the edge of the forming fabric. At this time, it is necessary to increase the width of the vacuum box opening, add normal pressure lubricating water to the edge of the vacuum box, or apply reinforcing ribs at appropriate locations.
Why does the forming fabric produce delayed wear?

Hysteresis wear is caused by the running speed of the forming fabric being lower than the surface of the dewatering elements and other devices in contact with it. It usually occurs at the couch roll or drive roll.
How to deal with the forming fabric when the paper machine is shut down?

If the shutdown time is short, on a paper machine with low load and low pulp temperature, the original operating tension value can be retained;
If it is on a high-speed paper machine with high load and high temperature, even if it is shut down for a short time (the fourdrinier paper machine is at creeping speed), the tension must be relaxed;
If the machine is shut down for a long time, all tensions need to be relaxed and the forming fabric needs to be stored without tension. It can also be washed and unrolled for storage.
What should be paid attention to when using the forming fabric in normal times?

When the paper machine is shut down, turn off the vacuum water suction device to avoid partial sinking of the forming fabric and accelerating the wear and wrinkling of the forming fabric. Turn off the high-pressure water at the same time to avoid partial sinking of the forming fabric and accelerating the wear and wrinkling of the net.
What should be paid attention to before installing the forming fabric?

Before starting the machine, it is necessary to check and remove foreign objects on the forming fabric and the automatic net guide system according to the direction of the arrow on the forming fabric.
How to get the price of press felt?

Please provide us with the following information:your paper machine speed, paper kind, paper weight and the size of the felt(W*L*GSM)
What are the causes of press felt lint?

There are many reasons for the damage and the lint of the felt, mainly two of which are scraped by machine parts and chemical damage. The most common is that the surface of the press felt torn loosened by high pressure water.Sometimes the responsibility is not with the fabric, because the fibers can also come from pulp or even from outside systems.
What causes the standard thread of press felt to run off or bend and deform in front and back?

①The length of both sides of the press felt is not the same
②The paper machine rollers are not parallel, causing the press felt to be unevenly tightened
③Uneven watering of the press felt when restarting the machine, resulting in inconsistent shrinkage of the press felt.
What should I do if the press felt becomes wider after use?

The press felt may become wider after a period of use, which is normal. Don't tear it by hand, you should stop machine and cut off the extra edge after it is dry, then use a soldering iron to iron the edge.
What should we pay attention to when changing a new felt?

Distinguish the front and back side of the felts.

Install according to the standard line on the felt
